钢珠滑轨
- Steel Ball Slide

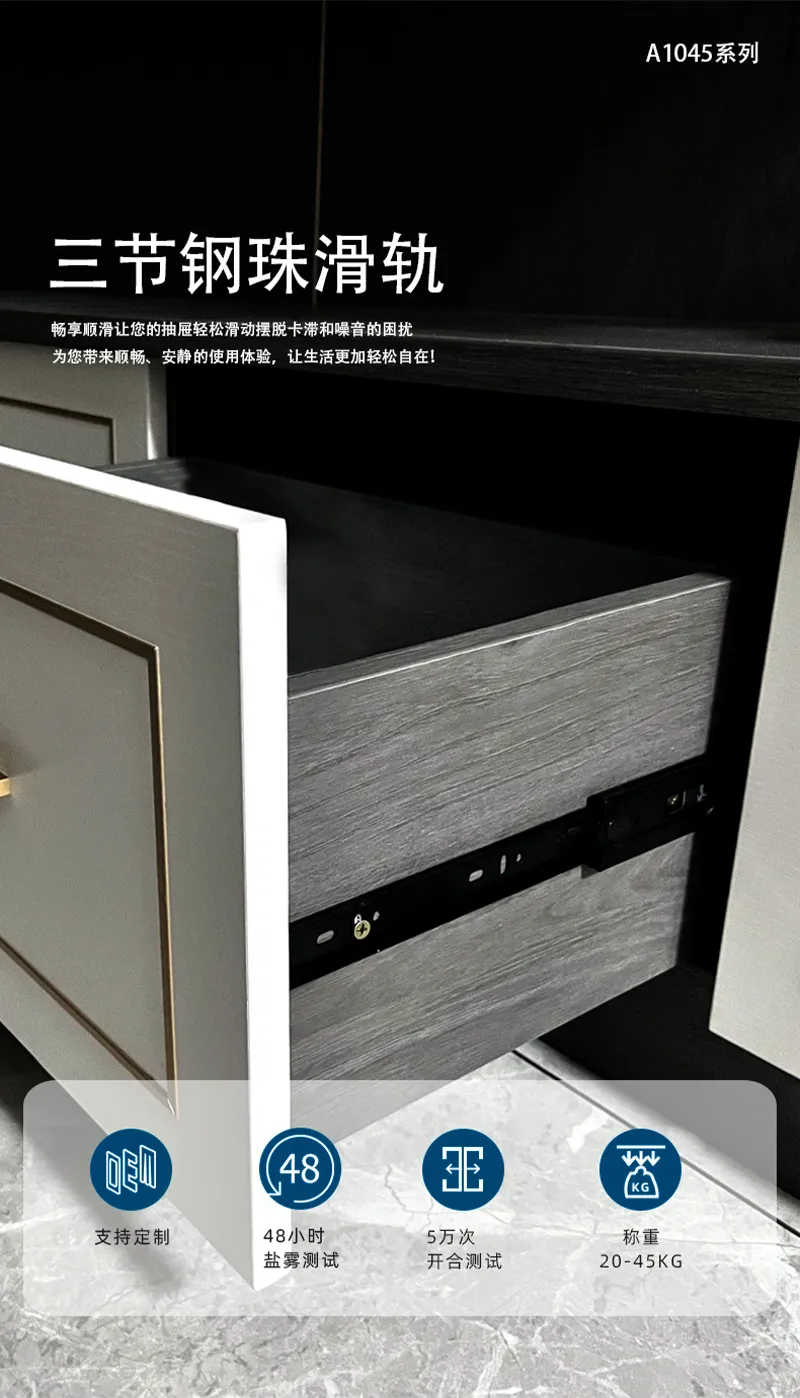

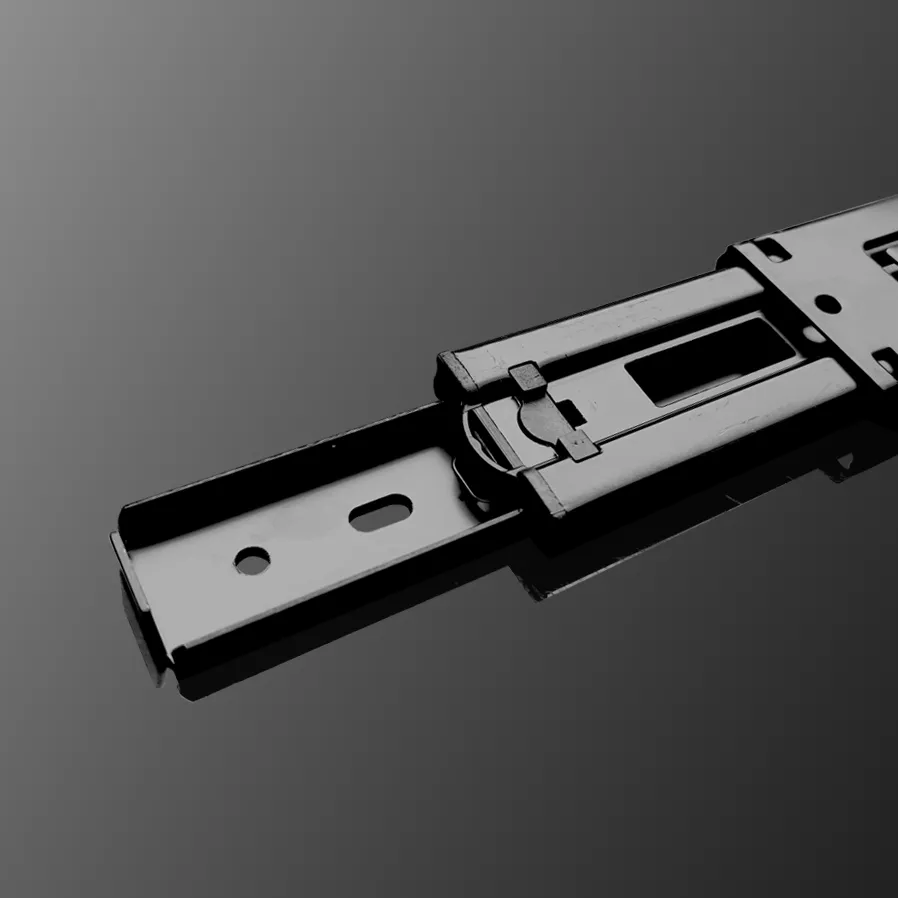

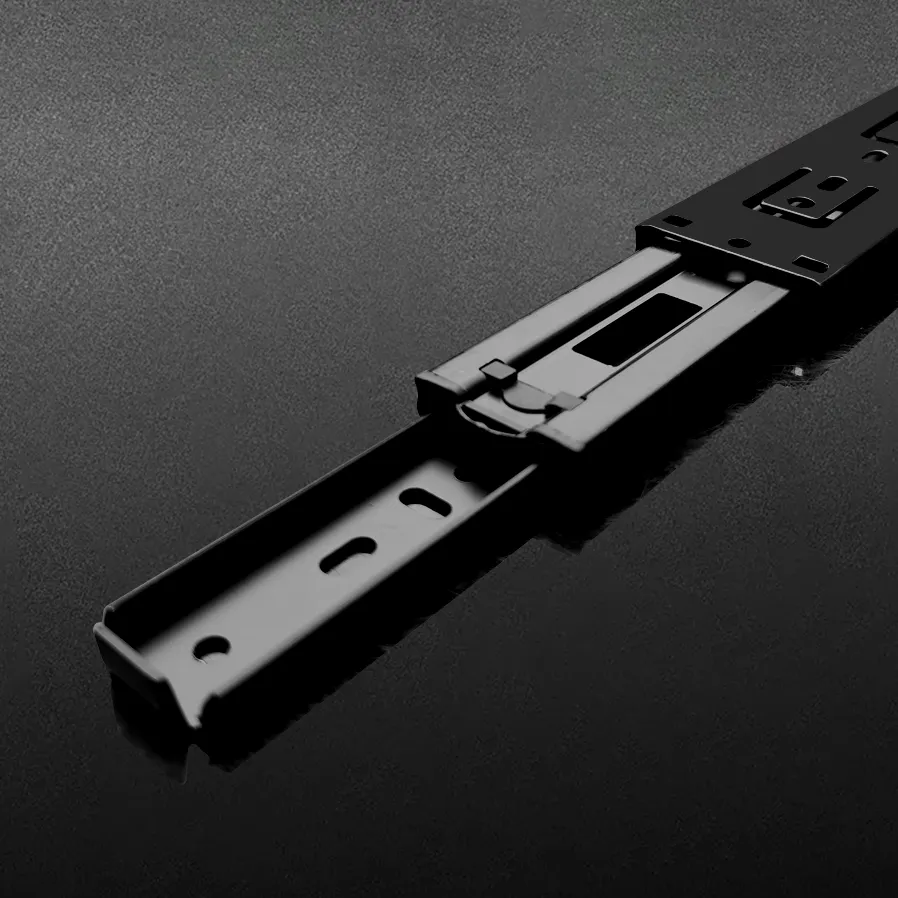

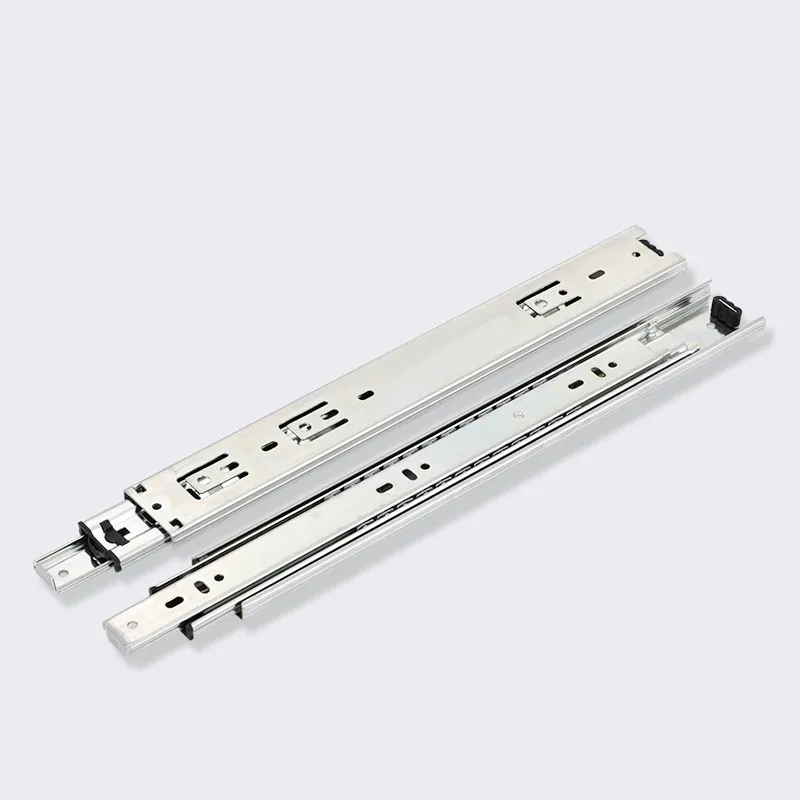

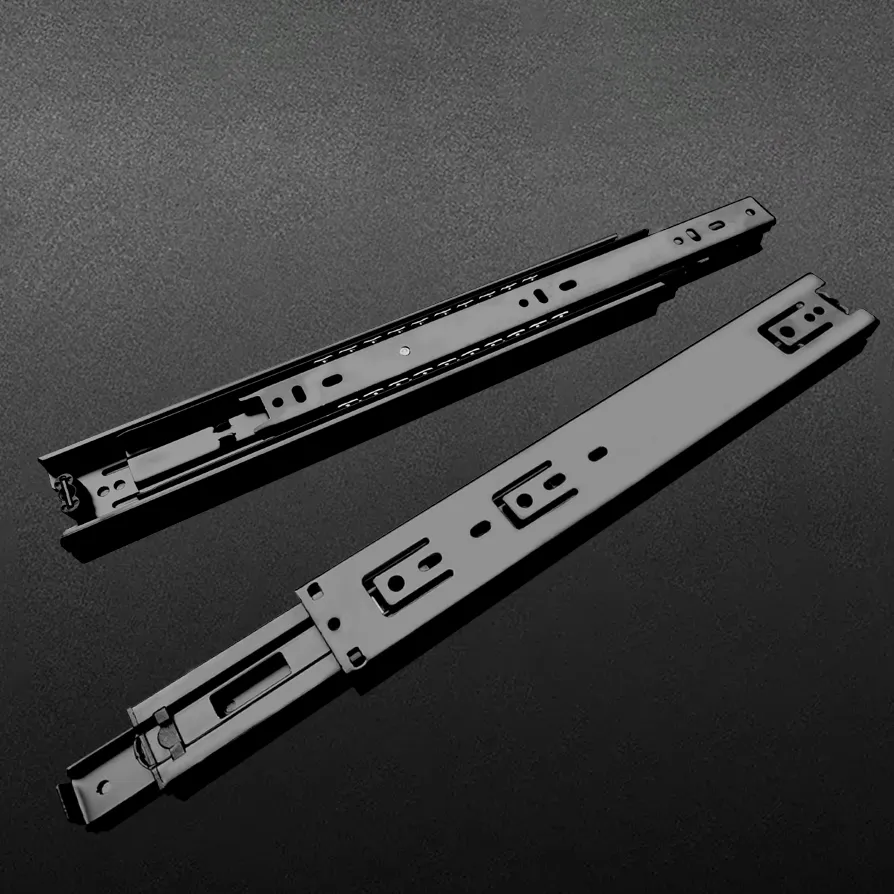

三节钢珠抽屉滑轨 A1045
亮点：
超强承重,顺滑静音,耐用抗腐,全拉设计,安装便捷

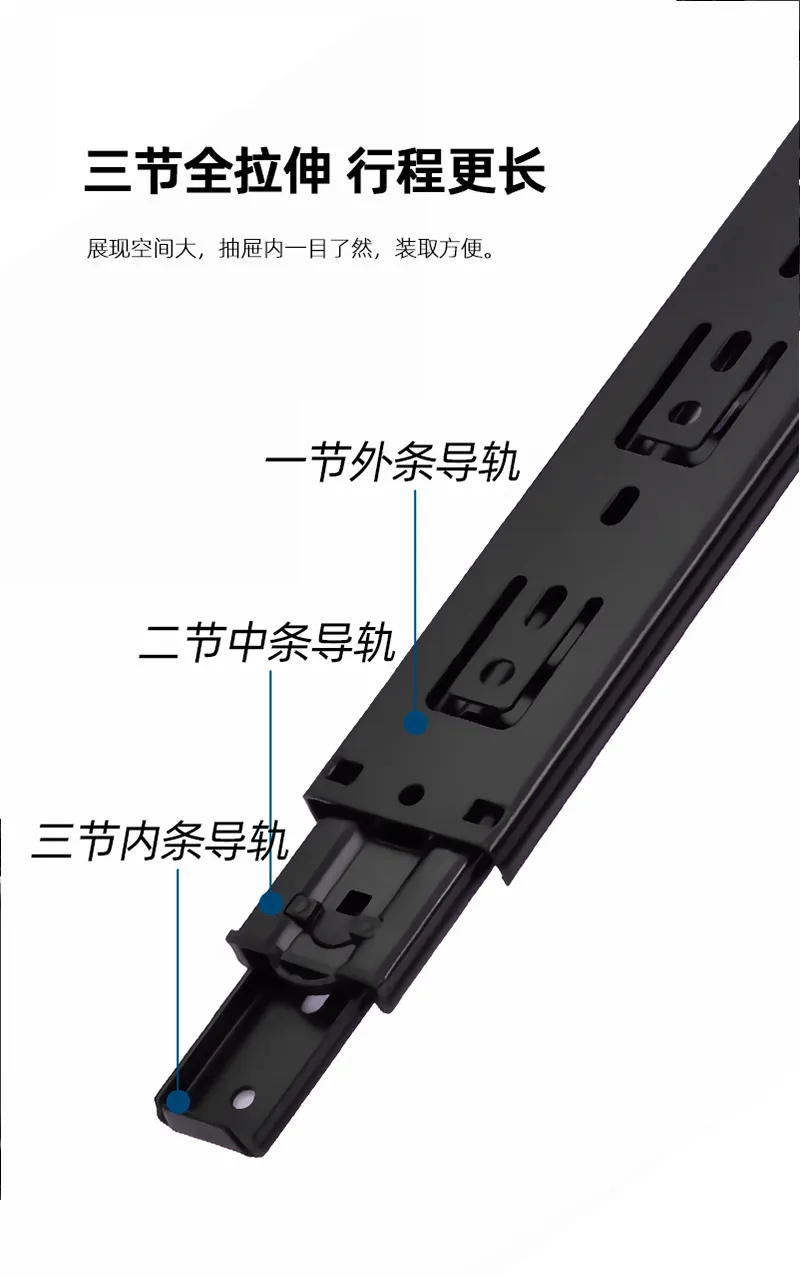

现代家具五金中三节钢珠抽屉滑轨是由三段高品质钢材滑轨精密组合而成，表面经精细打磨，电镀防生锈处理，光滑美观且能减少摩擦，适配各类家具抽屉。

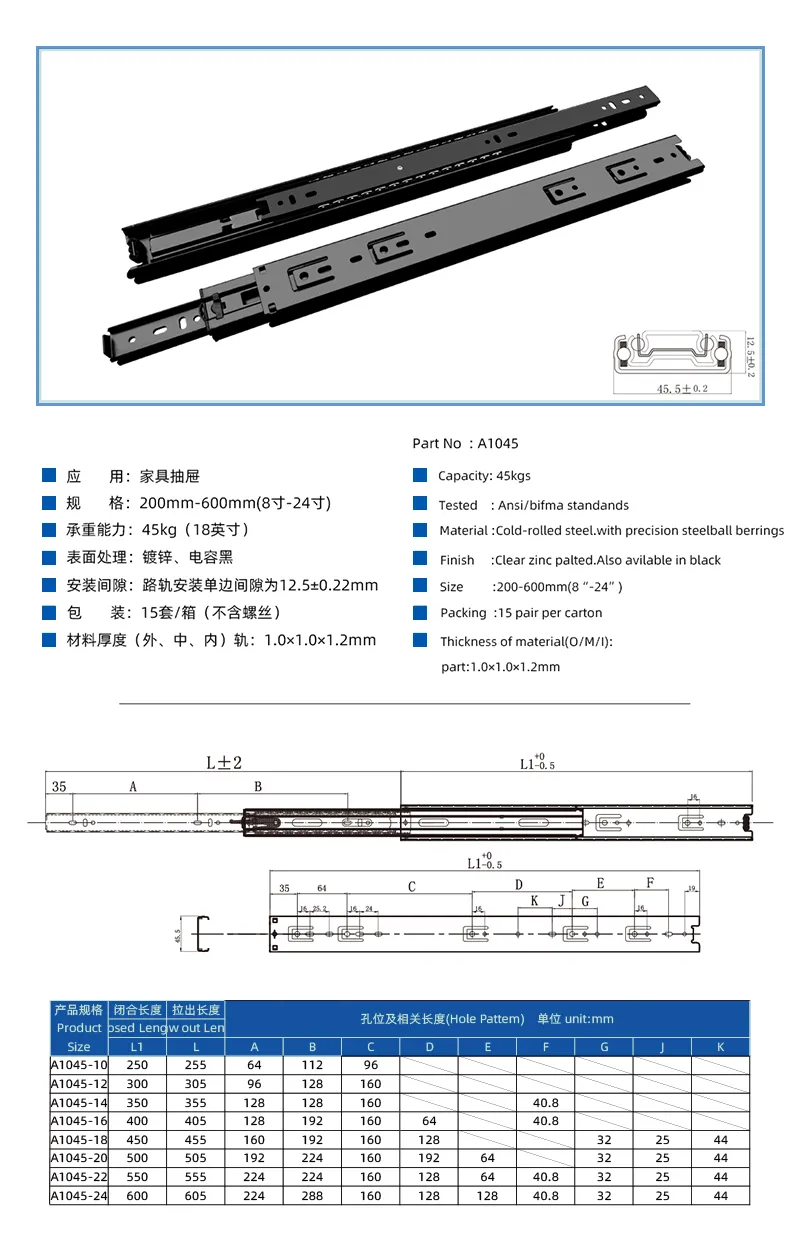

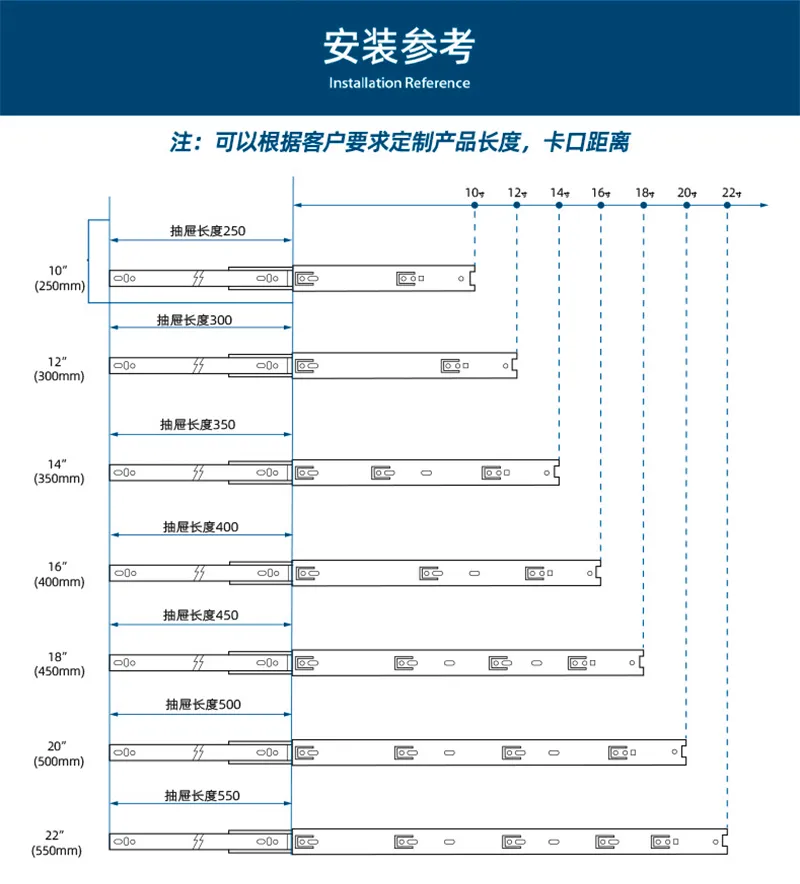

| 产品规格Product Size | 闭合长度 | 拉出长度 | 孔位及相关长度(Hole Pattem) 单位 unit:mm | ||||||||
| Closed Length | Draw out Length | ||||||||||
| L1 | L | A | B | C | D | E | F | G | J | K | |
| A1045-10 | 250 | 255 | 64 | 112 | 96 | ||||||
| A1045-12 | 300 | 305 | 96 | 128 | 160 | ||||||
| A1045-14 | 350 | 355 | 128 | 128 | 160 | 40.8 | |||||
| A1045-16 | 400 | 405 | 128 | 192 | 160 | 64 | 40.8 | ||||
| A1045-18 | 450 | 455 | 160 | 192 | 160 | 128 | 32 | 25 | 44 | ||
| A1045-20 | 500 | 505 | 192 | 224 | 160 | 192 | 64 | 32 | 25 | 44 | |
| A1045-22 | 550 | 555 | 224 | 224 | 160 | 128 | 64 | 40.8 | 32 | 25 | 44 |
| A1045-24 | 600 | 605 | 224 | 288 | 160 | 128 | 128 | 40.8 | 32 | 25 | 44 |
